4-Port USB 3.0 Hub 1.5A for DCP Charging Support DIN RAIL Mounting Kit

$99.99

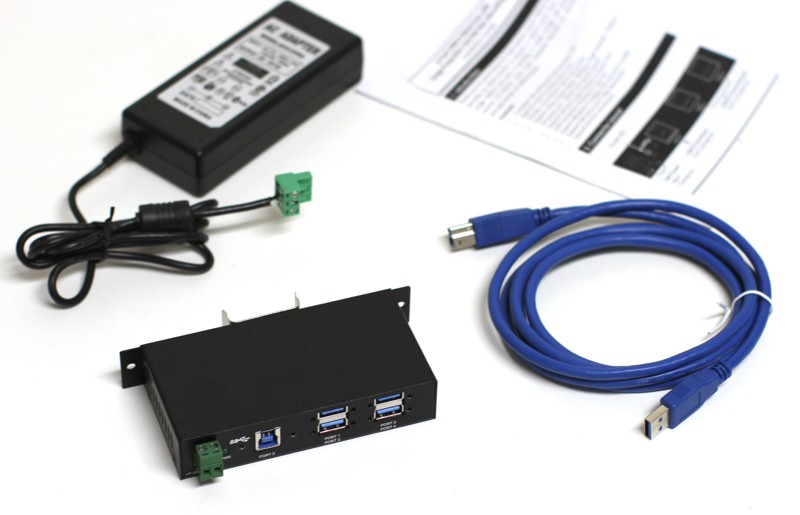

4-Port USB 3.0 Hub w/ DIN RAIL Mounting Kit 1.5 amp per port Charging
Availability: In stock
SKU
USBG-4U3ML
Product Description: The USBG-4u3ML is a USB 3.0 Hub that complies with the Universal Serial Bus 3.0 (USB3.0) Specifications Revision 1.0 and works up to 5Gbps. It provides 4 downstream facing ports with standard Type-A USB3.0 connectors. It also supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables, which prevents against accidental disconnection while transferring data. With a built-in single chip USB3.0 controller, this hub is backward compatible when any one of the downstream ports is connected to an USB1.1 or USB2.0 compliant device, or when the upstream port is connected to a USB1.1 or USB3.0 compliant host. The USBG-4u3ML also provides a unique feature to work in the bus-powered mode without an external AC power adapter. This hub is very convenient for light power consumption USB devices to work in this mode without an extra power supply. Simply plug the device in and continue working. If necessary, the external DC jack is used for self-powered mode for more power on the 4 downstream ports. Additional Features & Specifications: For Systems with USB 3.0, USB 2.0 or USB1.1 Ports Provides 4 USB3.0 downstream ports which managing up to 5Gbps: Compliant with USB3.0 Specifications Revision 1.0 Provides 4 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic 1 Upstream Port for Super-speed, High-speed and Full-speed traffic Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed Supports USB Screw-lock Mechanism for Secure Cable Connection Supports Self-powered and Bus-powered Mode Supports up to 900mA USB Bus Power for Each Down-stream Port Supports Downstream Port Status with LED Dimensions: (15.20 x 5.96 x 2.35 cm) Hub Weight: .569 lbs. USB Devices: Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more. OS Support: Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8 Linux and Mac OS 10.X I/O Hardware: Supports 4 external USB3.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables. Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input. Form Factor: (15.20 x 5.96 x 2.35 cm)
More Information
SKU USBG-4U3ML
UPC 729440690540
Color Black
Part Number USB3-4PMDR
