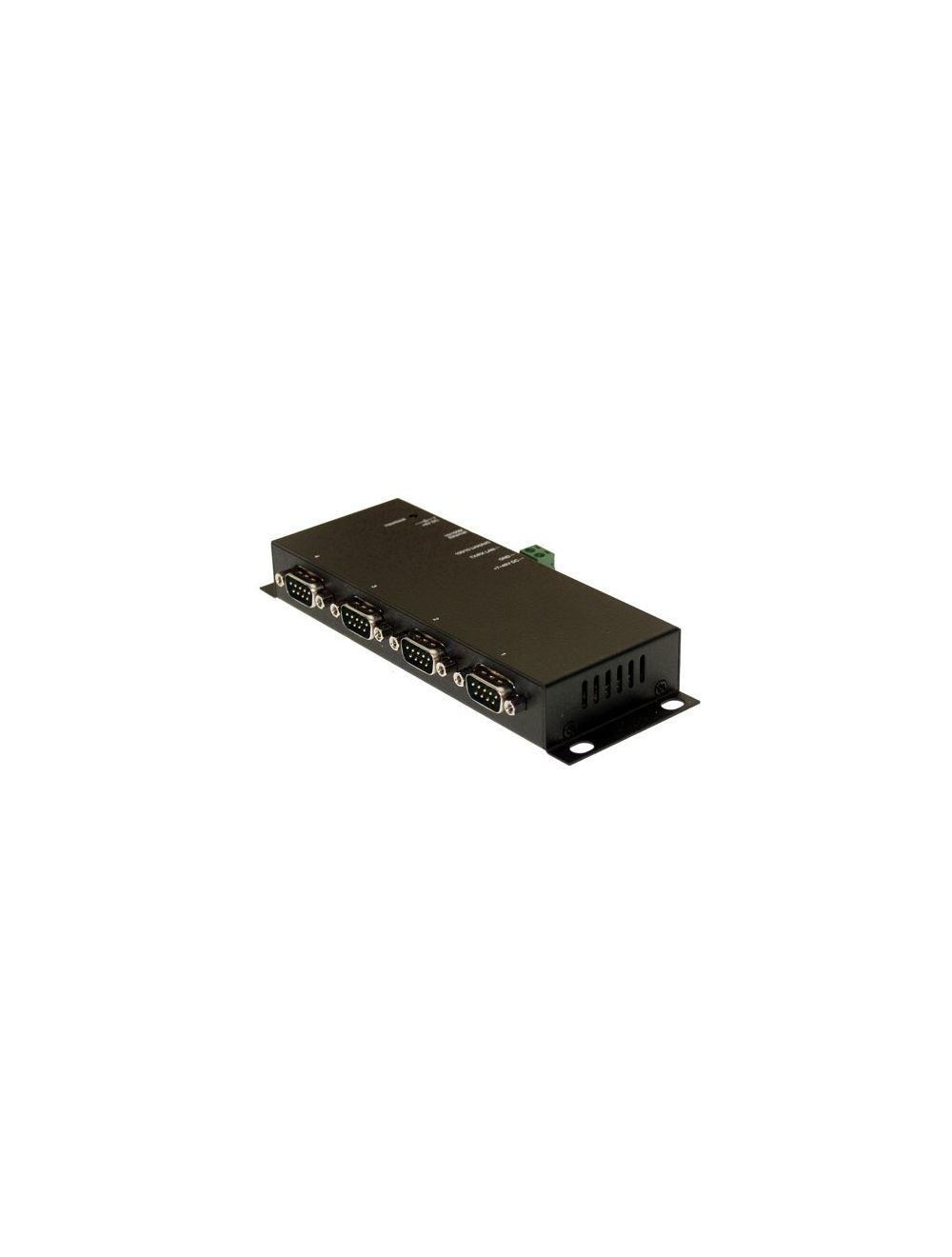

4-Port RS-232 to Ethernet Data Gateway

All New SerialGear(TM) Virtual Comport software included Serial TCPIP Server USer Guide
  • Provides 4-Port Serial RS-232C over Ethernet
  • Provides 4 DB9 RS-232C Male Connectors
  • RS-232C Speed from 300bps to 115.2Kbps
  • Provides one 10/100Mbps, RJ45 LAN Port
  • Supports Setup and Connect Passwords
  • Supports Standard Windows Socket Protocol
  • Provides TCP Server, TCP Client, and UDP
  • Built-in Watch Dog Feature
  • 5V DC DC Jack Power Input Connector
  • Includes Wall Mounting Kit Multi-port RS-232 to Ethernet Data Gateway Installation Guide

    INTRODUCTION

    The MSD-SRF4X 4-Port RS-232C to Ethernet data gateways is designed to adopt your industrial serial devices to the Internet instantly. It delivers simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the need to connect individual RS-232C devices, such as PLCs, meters, sensors, to an IP-based Ethernet LAN. It makes your application software to access serial devices anywhere on a local area network or the Internet. A built-in watch dog function is designed to reset the MSD-SRF4X when the hardware hang because some other unknown causes. The MSD-SRF4X is easy to install or remotely through a variety IP addressing methods (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping). It is ideal for applications requiring serial port environments and network device management.

    SPECIFICATIONS

    • LAN Port: Ethernet: 10/100 Mbps, RJ45 connector
    • Protocols: UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping

      Serial Interface

    • The Serial interface provides 4 DB9 RS-232 connectors. The key benefits are:
    • RS-232 Connector: DB9 male
    • Parity: None, Even, Odd
    • Data bits: 5,6,7,8
    • Speed: 300bps to 115.2Kbps
    • Provides wall mounting Kit
    • Watch Dog Function
    • A built-in watch dog function is designed to reset the MSD-SRF4X when the hardware/software hang because some other unknown causes.
    • Power Requirements
    • 5V DC from DC Jack Power Input Connector
    • Optional +7 – 40V DC through 2-wire power terminal connector
    • Power supply is not included
    • Environmental: Operating Temp.: 0 to 558C (32 to 1318F) Storage Temp: -20 to 858C (-4 to 1858F) Operating Humidity: 5 to 95% RH
  • More Information
    UPC 729440692438
