USB 3.1 Gen1 4 Port Mini Hub with Surge Protection

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

USB 3.1 Powered 4 Port Mini Hub with ESD & Surge Protection

Email to a Friend

Be the first to review this product

SKU: CG-U3MINI4PH

Availability: In stock.

$39.95
Add Items to Cart Add to Cart

Quick Overview

ESD and Surge protection over each individual USB 3.1 port. An industrial-grade USB 3.1 Mini 4 Port Hub that gives you up to 5Gbps of data transfer speed and a surface mount capability. Includes and 5V DC input jack for self-power option.


Compact, Mountable USB 3.1 Gen1 4 Port Hub w/Power Adapter

USB 3.1 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI4PH is a 5V DC input, generation 1 USB 3.1 hub with ESD and Surge protection. This USB 3.1 Hub will support fast charging for Apple 1A/2.4A and Samsung Galaxy devices.

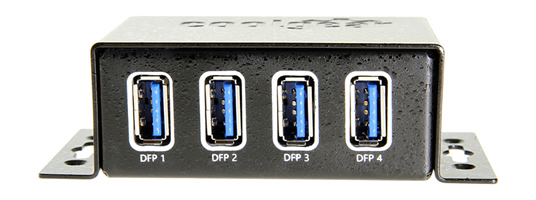

USB 3.1 Gen1 Hub DFP Labeled

USB 3.1 Gen1 Hub DFP Labeled

Each port is protected individually to help keep your peripherals safe. The USB 3.1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.

USB 3.1 4 Port Mini Hub Features

  • Compliant with USB 3.1 Gen 1 Specification
  • Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
  • Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
  • 1 control pipe and 1 interrupt pipe
  • Backward compatible to USB specification Revision 2.0/1.1
  • Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
  • Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
  • Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
  • Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
  • Supporting Apple 1A/2.1A/2.4A and Samsung Galaxy devices fast-charging
  • Compatible with Windows XP, 7, 8,10, and Mac OS X

Specifications

  • Chip: GL3510
  • USB 3.1 Gen Compliant
  • Supports High Speed and Full Speed transmit and Receive
  • Complies with USB-IF battery charging specification rev1.2
  • Automatic switching between self-powered and bus-powered modes
  • Built-in 5 to 3.3V and 5 to 1.2V regulator
  • RISC-like architecture
  • Item Dimensions: 2.86"(L 3.8" w/ears) x 1.85(W) x 1.16(H)

Package Contents

  • USB 3.1 4-Port Hub
  • 4Amp 5V DC Mini-Switching Power Adapter
  • USB A to B Cable for Hub
SKU CG-U3MINI4PH
UPC 045079158399
Color Black
Manufacturer Coolgear
USB Speeds (Mbps) Super Speed (5000)
Compatibility , , , , Windows 10
Connectors USB 3.0 A Female, USB 3.0 B Female
Material Metal
External Interface USB 3.1 Gen1
Warranty One Year
